The LG-001N laser safety glasses have an OD 7+ from 950nm to 1080nm, providing excellent protection for 1064nm and 1080nm high-power Fiber and Nd:YAG lasers used in medical, industrial and scientific applications. They also cover 808nm to 1090nm with an OD 5+, ensuring broad protection.
Featuring a modern wraparound design with adjustable arms, they offer a secure fit for various head sizes. With 59% Visible Light Transmission (VLT), they maintain excellent visibility. Fully certified to Australian / NZ, US, European, and international laser safety standards.
Key Features:
-
Protection: OD 7+ @ 1064nm & 950nm–1080nm
-
Design: Wraparound frame with adjustable arms for a secure fit
-
Durability: Flexible and robust construction
-
Standards: AU/NZS 2211.1:2004, ANSI Z136 (US), CE, EN207/208
-
Visibility: 59% VLT providing excellent clarity
-
Accessories: Protective case, adjustable head strap, and lens cloth
-
Warranty: 24 months
- Manufactured in the USA
Specifications (Printed on the Glasses)
| Wavelength |
OD |
EN207 L-Ratings |
| >950-1080nm |
7+ |
>950-1080 D LB6 + IRM LB7 |
| >1080-1090nm |
5+ |
>1080-1090 DIRM LB5 |
| >840-950nm |
5+ |
>840-950 DIRM LB5 |
| 808-840nm |
4+ |
790-<808 DIRM LB3
808-840 DIRM LB4 |
| 190-400nm |
5+ |
190-315 D LB8 + IR LB4 + M LB6Y
>315-425 DIRM LB5 |

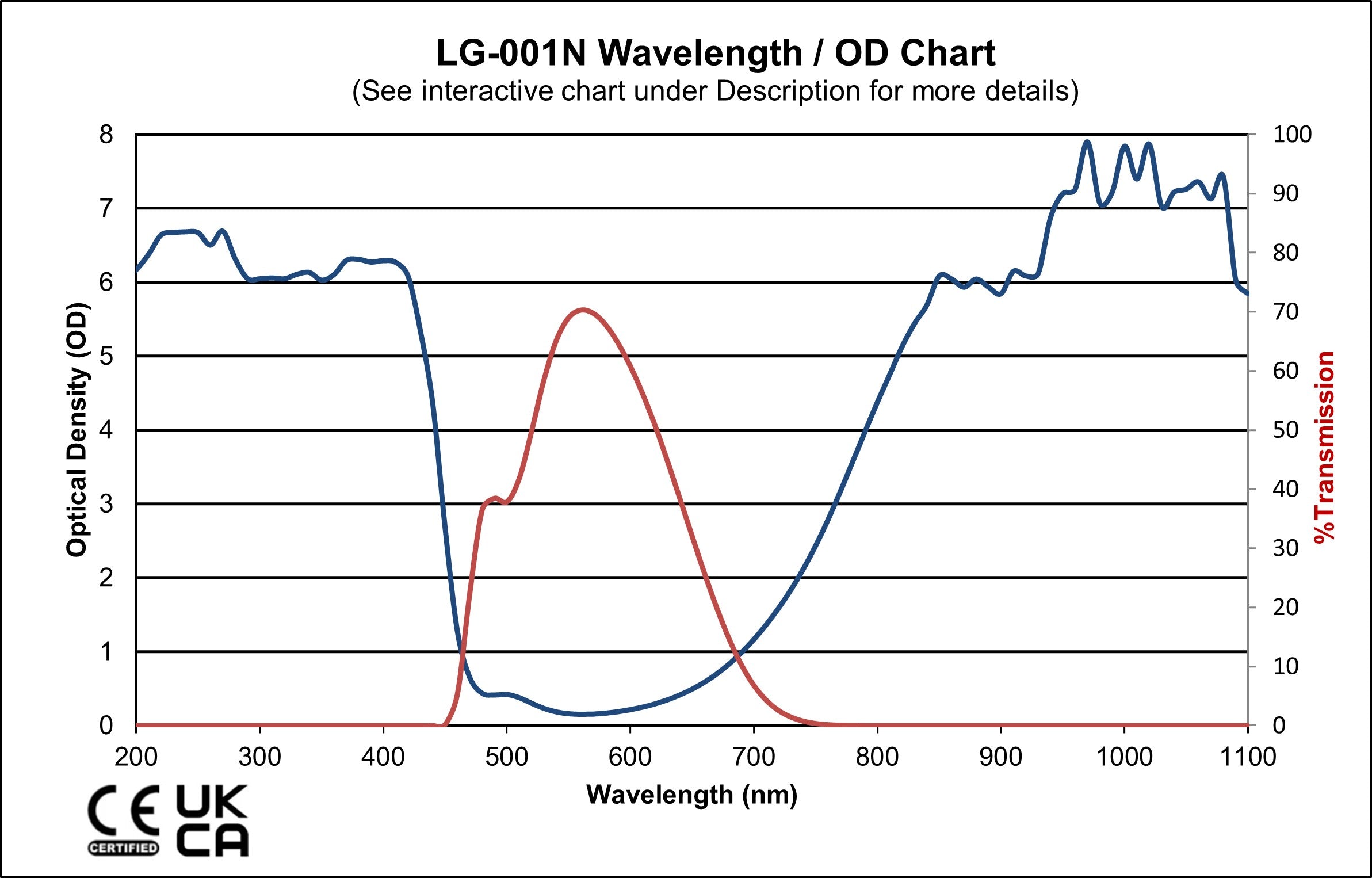

The chart above shows the filter data for the LG-001N. Please note that only the wavelengths and OD ratings listed in the specifications and marked on the glasses are guaranteed.
Wavelengths covered: 808 nm , 810 nm , 830 nm, 850 nm , 1064 nm , 905 nm , 980 nm , 1070 nm , 1080 nm , 1090 nm
