Applications:
- Holmium - 2080nm / 2100nm
- CO2 - 10600nm
- Thulium - 1927nm / 1940nm
Features:
-
Protection: OD 5+ 2100nm & OD 6+ 10600nm
-
Warranty: 24 months
- Manufactured in the USA
-
Design: Modern semi-frameless design
-
Durability: Flexible and robust construction
-
Side Shields: Enhanced peripheral protection
-
Standards: AU/NZS 2211.1:2004, ANSI Z136 (US), CE, EN207/208
-
Visibility: 41% VLT neutral filter for excellent clarity
-
Lightweight: Comfortable to be worn for extended periods
-

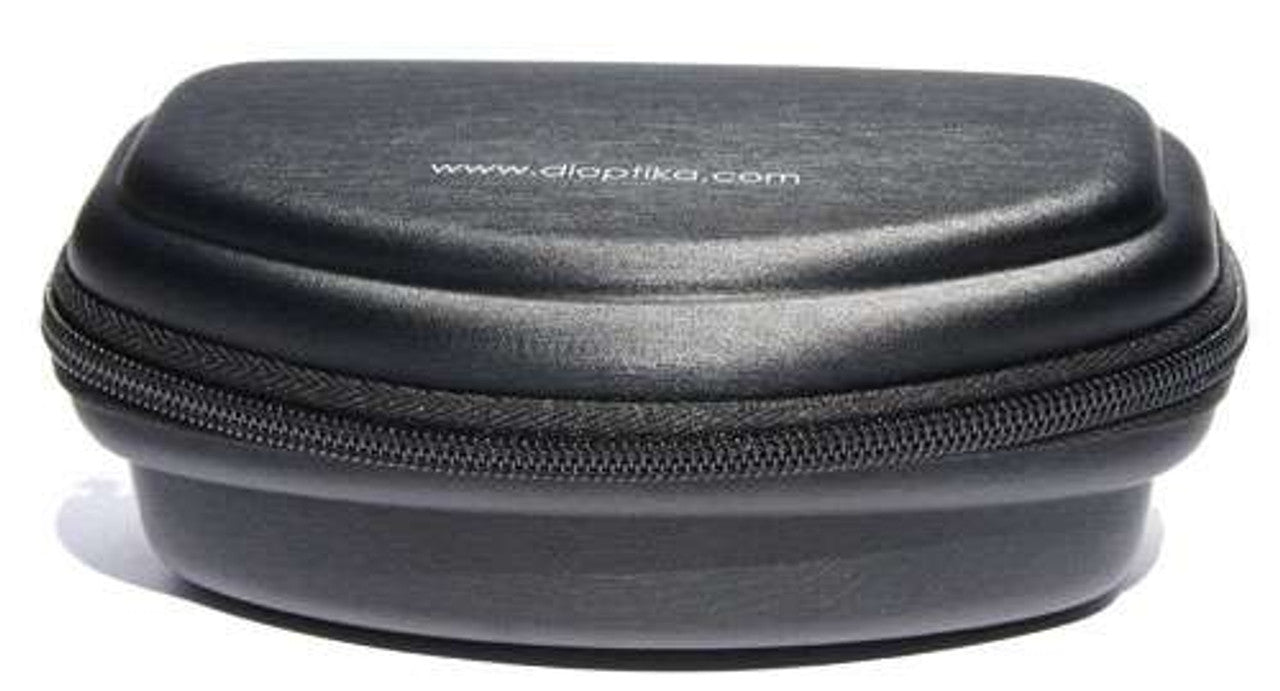

Accessories: Protective case, adjustable head strap, and lens cloth
The LG-090Z laser safety glasses provide OD 5+ protection at 2100nm for Holmium lasers, OD 6+ at 10,600nm for CO₂ lasers, and OD4+ at 1927nm & 1940nm Thulium making them ideal for urology and surgical applications. Designed in a semi-frameless style, they provide an unobstructed field of view. The neutral tint, ensures clear visibility while maintaining maximum protection. Certified to meet Australian / NZ, US, European, and international laser safety standards, the LG-090Z Holium laser safety glasses offer reliable safety for medical professionals.
Specifications (Printed on the Glasses)
| Wavelength |
OD |
EN207 L-Ratings |
|
2100nm
1980-2550nm
|
5+ |
>1800-3000 DI LB4 |
| 9000-10600nm |
6+ |
790-<808 DIRM LB3
808-840 DIRM LB4 |
| 5200-11000nm |
5+ |
5200-11000 DI LB4 |
| >1775-3000nm |
4+ |
>1650-1800 DI LB3
>1800-3000 DI LB4 |
| >1650-1775nm |
3+ |
>1650-1800 DI LB3 |
| 1450-1650nm |
2+ |
1400-1450 DI LB1
>1450-1650 DI LB2 |
| 190-400nm |
5+ |
|
The chart above shows the filter data for the LG-090Z. Please note that only the wavelengths and OD ratings listed in the specifications and marked on the glasses are guaranteed.
Common Wavelengths covered: 2100 nm , 10600 nm, 2940 nm, 2780 nm
Our team can assist in confirming suitability for your specific application. Contact us at info@dioptika.com and one of our laser safety experts will be happy to help.
