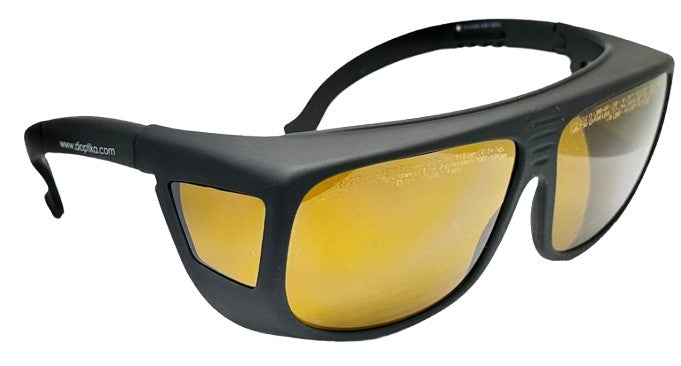

The LG-998 laser glasses provide a very high OD 10 + level of protection at 1064nm and cover all wavelengths from 745nm to 1100nm with an OD 7+. They offer excellent protection against high-power fiber lasers used in laser cleaning, cutting and welding and the common laser wavelengths of 1064nm, 1080nm, 755nm, 810nm and 532nm. They are a universal fitover style, that can be worn comfortably with or without prescription glasses. The LG-998 laser safety glasses are certified to meet Australian / NZ, US, European, and international laser safety standards.
Key Features:
-
Protection: OD 10+ @ 1064nm & OD 7+ @ 190-532nm & 745 to 1100nm
-
Design: Universal fit-over style with adjustable arms for a secure fit
-
Durability: Flexible and robust construction
-
Side Shields: Enhanced peripheral protection
-
Standards: AU/NZS 2211.1:2004, ANSI Z136 (US), CE, EN207/208
-
Visibility: 13% VLT
-
Accessories: Protective case, adjustable head strap, and lens cloth
-
Warranty: 24 months
- Manufactured in the USA
Specifications (Printed on the Glasses)
| Wavelength |
OD |
EN207 L-Ratings |
| >980-1065 |
10+ |
755-1100 D LB7 + I LB9 + R LB8 + M LB8Y |
| >800-980 |
8+ |
755-1100 D LB7 + I LB9 + R LB8 + M LB8Y |
| 765-800 |
10+ |
755-1100 D LB7 + I LB9 + R LB8 + M LB8Y |
| 745-1100 |
7+ |
745-750 DIRM LB6
751-754 DIRM LB7
755-1100 D LB7 + I LB9 + R LB8 + M LB8Y |
| 730-1110 |
5+ |
730-744 DIRM LB5
745-750 DIRM LB6
751-754 DIRM LB7
755-1100 D LB7 + I LB9 + R LB8 + M LB8Y |
| 190-532 |
8+ |
315-532 D LB6 + IR LB8 + M LB7Y
533-535 DIRM LB5 |
The chart above shows the filter data for the LG-998. Please note that only the wavelengths and OD ratings listed in the specifications and marked on the glasses are guaranteed.
Common wavelengths covered: 405 nm , 450 nm , 532 nm , 755 nm , 808 nm , 810 nm , 830 nm, 850 nm , 1060 nm 1064 nm , 905 nm , 980 nm , 1070 nm , 1080 nm , 1090 nm , 1100 nm
